1-532428-5 - TE Connectivity
TE Connectivity

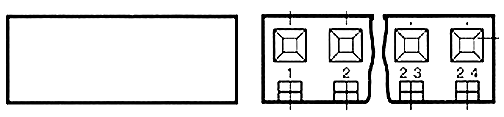

1-532428-5
1-0532428-5
1-0532428-5
Other Connectors
AMP-HDI Series 100
Datasheets
Datasheets
Technical Characteristics
Technical Characteristics
Product Type Features
- PCB Connector Assembly Type:PCB Mount Receptacle
- Connector System:Board-to-Board
- Sealable:No
- Connector & Contact Terminates To:Printed Circuit Board
- Boss:No
- Make First / Break Last:No
- Product Type:Connector
- Sealed Bottom:Without
Configuration Features
- Stackable:No
- PCB Mount Orientation:Right Angle
- Number of Positions:200
- Board-to-Board Configuration:Right Angle
- Number of Rows:2
Electrical Characteristics
- Insulation Resistance(MO):2
Contact Features
- Contact Base Material:Copper Alloy
- PCB Contact Termination Area Plating Material:Tin-Lead
- Contact Configuration:Four-Beam
- Contact Mating Area Plating Material:Gold
- Contact Mating Area Plating Thickness(µin):30
- Contact Type:Socket
- Contact Current Rating (Max)(A):3
Termination Features
- Termination Method to Printed Circuit Board:Through Hole
- Termination Post Length:4.57mm[.18in]
Mechanical Attachment
- Mating Alignment:Without
- Mating Alignment Type:Keyed
- PCB Mount Retention:Without
- PCB Mount Alignment:Without
- Connector Mounting Type:Board Mount
Housing Features
- Centerline (Pitch):2.54mm[.1in]
- Housing Color:Natural
- Housing Material:Thermoplastic
Dimensions
- Height:4.57mm[.18in]
- Tail Length(in):.18
Usage Conditions
- Operating Temperature Range:-65 – 125°C[-85 – 257°F]
- High Temperature Compatible:Yes
Operation/Application
- Assembly Process Feature:None
- Pick and Place Cover:Without
- Circuit Application:Signal
Industry Standards
- UL Flammability Rating:UL 94V-0
Packaging Features
- Packaging Method:Tube
- Packaging Quantity:2
Accessories
Accessories
No details available.
